Details

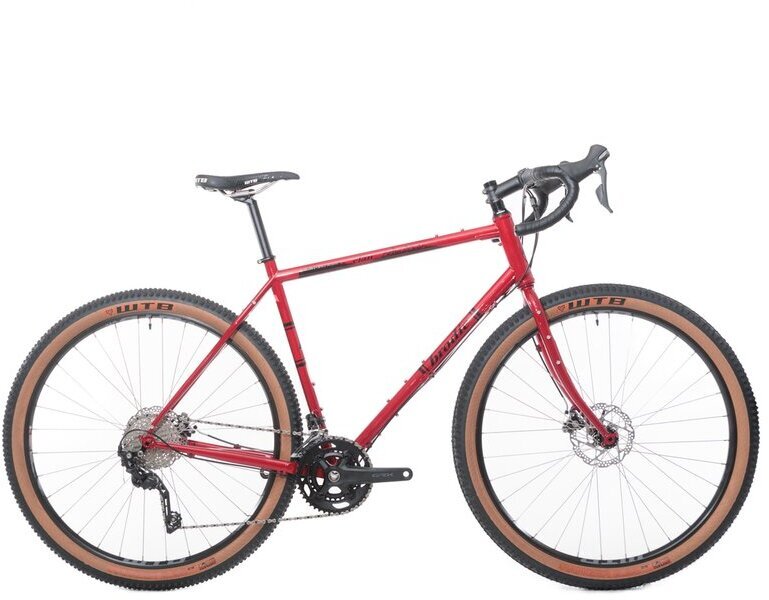

Is the updated Elan 2.0 an evolution or even a revolution of our adventure touring bike? We will let you decide! The Elan 2.0 is now more capable of your off road adventure. Versatility will always a big part of the Elan but now it has been improved for bigger load carrying and rougher terrain. The Elan 2.0 has updated geometry and now comes with Thru-Axles front and rear. We have moved the front/center more forward with an increase rake in the fork for more stability when fully loaded with all your gear.
Both the Elan 2.0 and Elan Vital 2.0 represent the modernization of the classic touring bike. They both share the same Geometry and CrMo Steel frame and able to accommodate a myriad of tires sizes to dial in the needs of your next adventure.
Shimano drivetrain with a GRX Adventure Crankset w 46/30T rings, paired with Shimano Tiagra 10 Speed shifters & 11-36T full range cassette. Shimano Mechanical Brakes that are easy to adjust, offer great modulation and have incredible stopping power.
The Elan is a terrific go anywhere touring or bike packing adventure bike.
Specs
Frame | 4130 CroMo DB Steel, #allthemounts |
---|---|
Fork | 4130 CroMo Steel, fender + 3 eyelets / Leg |
Headset | FSA Orbit-X, Angular contact Sealed Bearing |
Rear Shock | N/A |
Rims | WTB ST Light, 25mm inner width, TCS 2.0, Sleeved, 32 hole |
Hubs | F: Shimano Tiagra 470 12x100mm R: 12x142mm |
Tires | WTB Ranger Comp, Fast Rolling. 29x2.25 |
Crankset | Shimano GRX-600 |
Chainwheel | 46/30t |
Chain | KMC X10-1 |
Front Derailleur | Shimano GRX 400 |
Rear Derailleur | Shimano GRX 400 GS |
Rear Cogs | Shimano Tiagra 10spd 11-36 teeth |
Shifters | Shimano Tiagra |
Handlebars | Brodie Alloy DB Flared bar S-400, M-420, L/XL-440mm |
Tape/Grips | Perforated road tape |
Stem | Brodie 3D Forged Aluminium, S - 70mm, M - 90mm, L - 100mm, XL - 110mm |
Brake Levers | Shimano Tiagra |
Brakes | Shimano mechanical disc, BR-RS305 |
Pedals | N/A |
Saddle | WTB Koda Race, CroMp rails, Micro-fibre |
Seat Post | Brodie Alloy 27.2mm |
Accessories & Extras | F+R Thru Axles |
Color(s) | Burnt Red |
Sizes | S-46cm, M-50cm, L-54cm, XL-58cm |
* Subject to change without notice.
Part Numbers
Option | MPN | Store SKU |
---|---|---|
M-50 | 1988 338 050M | 210000016617 |
