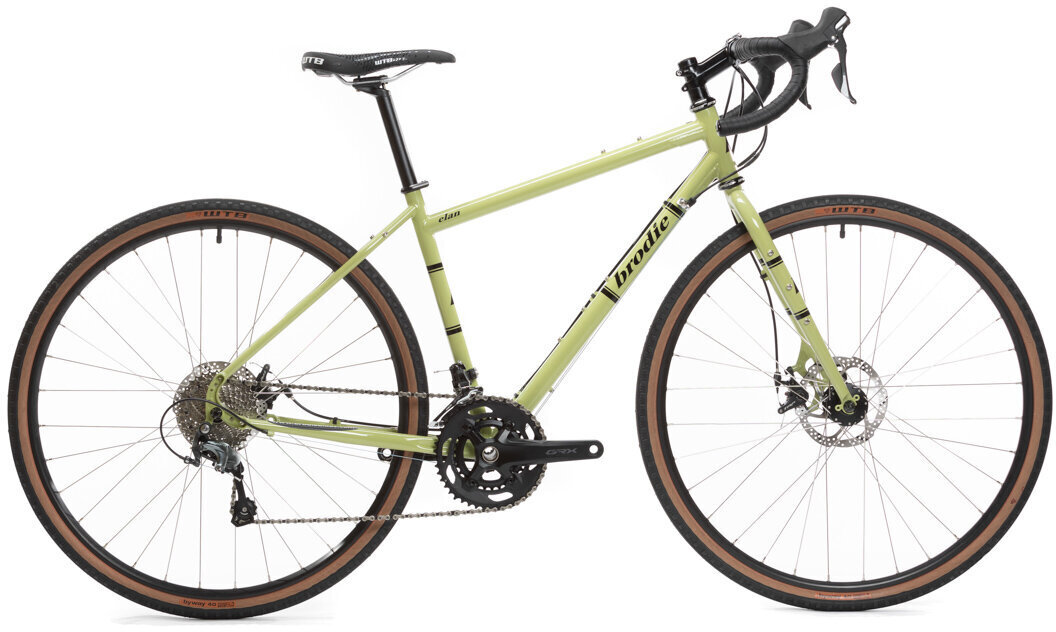

The updated Elan still has a nod to our classic touring bikes, just more versatile. The frame will fit 700x42c or 650 x 55c wheels and tires. The Shimano GRX Adventure Crankset w 46/30T rings & 11-34T cassette for an even greater range and fully loaded touring. The Elan frame and fork come with triple bottle mounts for King or Anything cages.

Both the Elan and Elan Vital represent the modernization of the classic touring bike. They both share the same Geometry and compact CrMo Steel frame and able to accommodate a myriad of tires sizes to dial in the needs of your next adventure. The Elan is fitted with an all around 700 x 40c tire and rim combo for a comfortable rough road or light gravel ride. The compact frame inspires confidence with a lower center of gravity and excellent standover clearance.


Frame 4130 CroMo Steel
Fork 4130 CroMo Steel, Fender + 3 eyelets
Headset FSA Orbit-X Angular contact sealed bearing
Rims Shining AS19, 584x19, w/Stainless Eyelets
Hubs Shimano Deore M-525
Tires WTB Byway, 700 x 40c TanSidewall
Crankset Shimano GRX-600 46/30t
Chain KMC X10-1
Front Derailleur Shimano GRX-400
Rear Derailleur Shimano Tiagra GS
Rear Cogs Shimano Tiagra 10spd 11-34t
Shifters Shimano Tiagra
Handlebars Brodie 3d Forged Alloy S-400mm, M-440mm, L/XL-460mm
Tape/Grips Perforated road tape
Stem S-70mm, M-90mm, L-100mm, XL-110mm
Brakes TRP Spyre Mech. Disc
Saddle WTB Koda Race
Seat Post Brodie Alloy 27.2
Color(s) Sage

* Subject to change without notice.

Part Numbers

Option MPN Store SKU
Small 1989338046 210000014218
Medium 1989338050 210000014220
Large 1989338054 210000014222
X-Large 1989338058 210000014224
