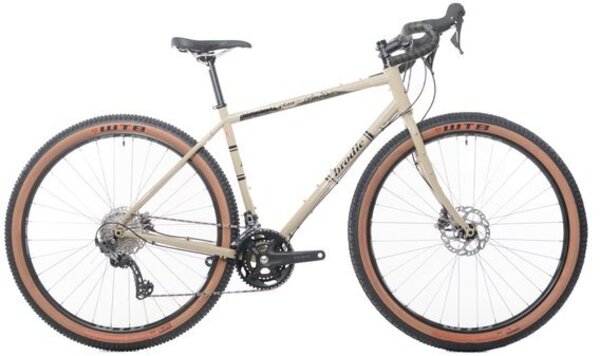

Brodie Elan Vital 2.0

Details
The evolution, maybe even a revolution of our adventure touring bike now makes it more capable of your off road adventure. Versatility is still a big part of the Elan Vital but now it has been improved for bigger load carrying and rougher terrain. The Elan Vital 2.0 has updated geometry and now comes with Thru-Axles front and rear. We have moved the front/center more forward with an increase rake in the fork for more stability when fully loaded with all your gear.
The Elan Vital 2.0 comes with 29 x 2.25” WTB RANGER COMP Fast rolling tires.If you need to go even bigger the frame will accommodate up to a 29 x 2.4” Tire !
Plenty of grip off the pavement while still plenty fast on the pavement. We added a bit more room for frame bags and storage and left plenty of room for full size panniers out back. The New CroMo Steel Frame and Fork both have triple water bottle mounts for Cargo Cages.
The Shimano drivetrain with a GRX Adventure Crankset w 46/30T rings & 11-34T full range cassette and Shimano Hydraulic GRX Brakes that are easy to modulate and have incredible stopping power.
The Elan Vital is the perfect anywhere touring or bike packing any adventure bike.
Specs
Frame | 4131 CroMo DB Steel, #allthemounts |
---|---|
Fork | 4131 CroMo Steel, fender + 3 eyelets / Leg |
Headset | FSA Orbit-X, Angular contact Sealed Bearing |
Rear Shock | N/A |
Rims | WTB ST Light, 25mm inner width, TCS 2.0, Sleeved, 32 hole |
Hubs | F: Shimano Tiagra 470 12x100mm R: 12x142mm |
Tires | WTB Ranger Comp, Fast Rolling. 29x2.25 |
Crankset | Shimano GRX-600 |
Chainwheel | 46/30t |
Chain | KMC X11-1 |
Front Derailleur | Shimano GRX 810 |
Rear Derailleur | Shimano GRX 810 11spd |
Rear Cogs | Shimano 105 11spd 11-34t |
Shifters | Shimano GRX 810 |
Handlebars | Ritchey Coralitas. 52mm reach 24° Flare, 67.5mm Drop |
Tape/Grips | Perforated road tape |
Stem | Brodie 3D Forged Aluminium, S - 70mm, M - 90mm, L - 100mm, XL - 110mm |
Brake Levers | Shimano GRX Hydraulic |
Brakes | Shimano GRX Hydraulic |
Pedals | N/A |
Saddle | WTB Koda Race, CroMp rails, Micro-fibre |
Seat Post | Brodie Alloy 27.2mm |
Accessories & Extras | F+R Thru Axles |
Color(s) | Desert Sand |
Sizes | S-46cm, M-50cm, L-54cm, XL-58cm |
* Subject to change without notice.
Part Numbers
Option | MPN | Store SKU |
---|---|---|
S-46 | 1988 340 046S | 210000016614 |
M-50 | 1988 340 050M | 210000016615 |
L-54 | 1988 340 054L | 210000016616 |
