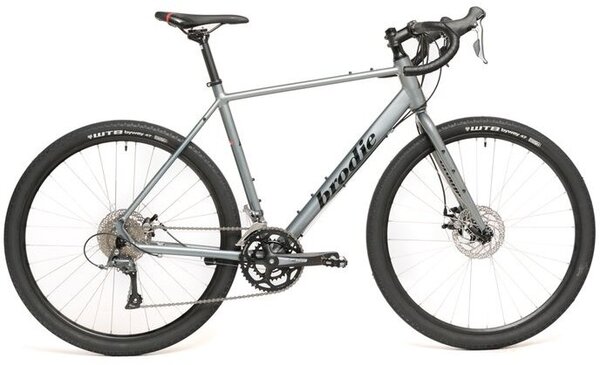

Brodie Revel 2.0
Details
The newly designed Revel makes for an excellent all purpose road bike and equally as well as an adventure bike. With the added benefit of WTB Byway Comp Road Plus 650b x 47c tires for some off road trail exploring. You can take the Revel anywhere! Group rides, weekend touring adventures, getting a smooth ride while keeping the speed on the road less traveled.
The Revel comes equipped with a 2X drivetrain that works great on and off road. The FSA TEMPO Adventure Crankset with 46/30T rings and 8 speed 11/34T cassette for wide range and versatile gearing can take you anywhere.
Road Plus adds versatility, safety, control and comfort opening up the ability to explore new destinations. Anything from smooth fast road rides, more adventurous road tours, long gravel adventures or dirt track touring.
Specs
| Frame | 6061 Butted Shaped Aluminium Alloy |
|---|---|
| Fork | 4130 CroMo Steel, Fender eyelets |
| Headset | FSA No.10 for 44mm HT |
| Rims | Alloy Double Wall 32H |
| Hubs | Shimano RM35 |
| Tires | WTB Byway Comp, 650x47c |
| Crankset | FSA Tempo Adventure |
| Chainwheel | 46/30t |
| Chain | KMC Z7 |
| Front Derailleur | Shimano Claris, 31.8mm Clamp |
| Rear Derailleur | Shimano Claris, GS |
| Rear Cogs | Shimano HG41, 8-Spd 11-34t |
| Shifters | Shimano Claris |
| Handlebars | Brodie Alloy DB Flaredbar. XS/S-420mm, M-440mm, L/XL-460mm |
| Tape/Grips | Microfibre Shockproof & Perforated road tape |
| Stem | Brodie 3D Forged Alloy, XS/S: 60mm, M: 75mm, L: 90mm, XL:100mm, +25° |
| Brake Levers | Shimano Claris |
| Brakes | ProMax 330D-R |
| Pedals | Alloy Body w/Steel Cage |
| Saddle | DDK Run Sport |
| Seat Post | Brodie Alloy 27.2mm |
| Color(s) | Ash Grey |
| Sizes | 48/51/54/57/60 |
* Subject to change without notice.
Part Numbers
| Option | Store SKU |
|---|---|
| XS - 48 | 210000016570 |
| S - 51 | 210000016571 |
