Details
The Sight 160 is next level - big travel, big spec, and ready for big mountain riding. Whether you're out racing an enduro or love going fast on technical trails, this is your bike to blow through the chunder. Inspired by the gnarliest trails in the backwoods of BC, built for riders living in areas where the terrain demands more out of the bike they ride.
New Technology:
Sight 160 is an all-round beefier build to handle everything you throw down. We've stepped up on spec to help you handle more; a 35mm rise bar, big name brakes with metallic pads, Double Down rear tire casing, and coil rear shock with Sprindex spring to ride hard. All Sight models also now include the OneUp EDC lite tool to have you covered on the trail.
Geometry: With stabilized rear centers and seat tube angles varied by frame size to ensure consistent rider weight distribution and shorter seat tubes with long dropper posts keep the saddle out of the way on technical descents the Sight is known for, the Sight 160 features a slacker headtube angle and a slightly taller bottom bracket than our standard Sight geometry to accommodate all the G's you push and obstacles you roll.
Frame Size | 1 | 2 | 3 | 4 | 5 |
---|---|---|---|---|---|
Wheel Size (in) | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" |
Travel (mm front/mm rear) | 160/150 | 160/150 | 160/150 | 160/150 | 160/150 |
Reach (mm) | 422.5 | 447.5 | 472.5 | 497.5 | 522.5 |
Stack (mm) | 618 | 627 | 636 | 645 | 654 |
HTA (Head Tube Angle) (degrees) | 64 | 64 | 64 | 64 | 64 |
OS (Fork Offset) (mm) | 44 | 44 | 44 | 44 | 44 |
ST (Seat Tube Length) (mm) | 350 | 370 | 385 | 430 | 445 |
STA (Effective Seat Tube Angle) (degrees) | 77 | 77.25 | 77.5 | 77.75 | 78 |
RC (Rear Centre Length) (mm) | 420 | 424 | 428 | 432 | 436 |
BBDF/R (Bottom Bracket Drop) (mm) | 25/4 | 25/4 | 25/4 | 25/4 | 25/4 |
BBH (Bottom Bracket Height) (mm) | 353 | 353 | 353 | 353 | 353 |
HTT (Horizontal Top Tube) (mm) | 565 | 589 | 613 | 637 | 661 |
WB (Wheelbase) (mm) | 1181 | 1214 | 1247 | 1281 | 1314 |
SOH (Standover) (mm) | 666 | 680 | 689 | 710 | 720 |
HT (Head Tube Length) (mm) | 105 | 115 | 125 | 135 | 145 |
Trail (mm) | 135 | 135 | 135 | 135 | 135 |
Recommended Seatpost Drop (mm) | 150 | 170 | 200 | 230 | 250 |
Maximum Post Insertion (mm) | 250 | 270 | 300 | 330 | 350 |
Stem Length (mm) | 40 | 40 | 40 | 40 | 40 |
Crank Length (mm) | 170 | 170 | 170 | 170 | 170 |
Tire Size (in) | 2.35" – 2.6" | 2.35" – 2.6" | 2.35" – 2.6" | 2.35" – 2.6" | 2.35" – 2.6" |
Water Bottle Compatible | 1 x 750 mL | 1 x 750 mL | 1 x 750 mL | 1 x 750 mL | 1 x 750 mL |
Frame Size | 1 | 2 | 3 | 4 | 5 |
---|---|---|---|---|---|
Rider Height (ft/in) | 5'1" - 5'5" | 5'4" - 5'8" | 5'7" - 5'11" | 5'10" - 6'2" | 6'1" - 6'5" |
Rider Height (cm) | 155 - 165 | 162.5 - 172.5 | 170 - 180 | 177.5 - 187.5 | 185 - 195 |
Specs

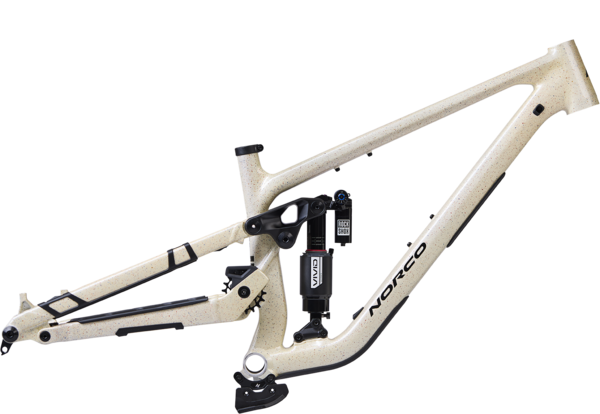

Frame | Sight Aluminum, High Pivot Horst Suspension, 150mm Travel, UDH, Hangerless Interface Compatible, Ride Aligned™ |
---|---|
Rear Shock | RockShox Vivid 2 Ultimate Air, 205x60 TR |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Confetti Cake / SZ3 | 058817718274 | 621415116 | 210000017229 |
Confetti Cake / SZ4 | 058817709067 | 621415117 | 210000017231 |
Confetti Cake / SZ5 | 058817709142 | 621415118 | 210000017233 |
